2015 Amada AE-2510NT, 4' x 8' Table
Have one to sell?
ConditionUsed
1 available

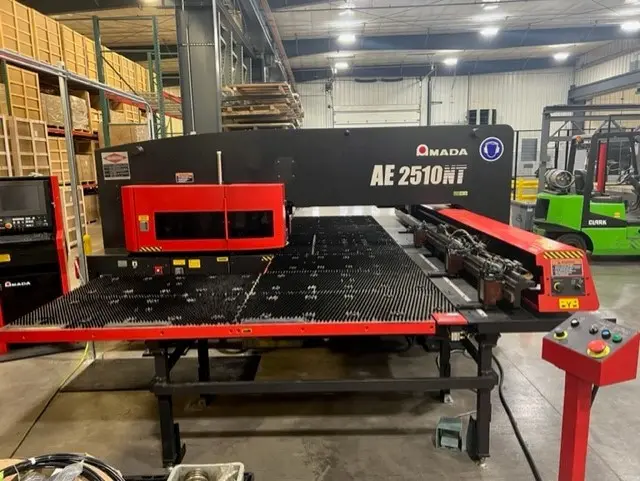

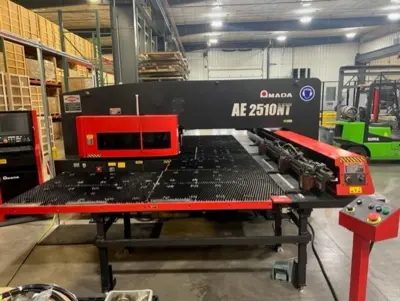

2015 Amada AE-2510NT turret punch with 4' x 8' table. Features 20T tonnage, 58 turret stations. Precise and robust, the machine operates with 200/208V requirements. Machine weight: 26,000lbs.
Amada NT CNC Controls, 58 Station Thick Turret, Brush Table.
Press Capacity: 22 Tons
Max Axis Travels (Y, X): 50 X 98.425″
Max Sheet Size: 50″ X 196.85″
Max Sheet Thickness: 0.125″
Max Material Weight: 110lbs
Punching Accuracy: ± 0.004″
Max Feed Speed X-Axis: 3150
Max Feed Speed Y-Axis: 2362
Marking: 900HPM
Punching: 350 (X), 285 (Y)
Turret Rotation Speed: 30RPM
Turret Feed Clearance: 0.984″
Turret Configuration: 58-Station 2 Auto-Index
Auto Index Rotation Speed: 60RPM
Maximum Hole Diameter: 4.5″
Pneumatic X-Gauge Block: Standard
Pneumatic Clamps: 3 Standard
Program Storage: 10MB (120KB max program size)
Graphic Screen: TFT 15″
PV (Power Vacuum) Slug Removal: Standard (0.5″ & 1.25″)
Power Requirement: 19KVA
Operating Voltage: 200/208V, 3 Phase
Operating Air Pressure: 72PSI
Compressed Air Pressure: 17.65 cubic ft. per minute
Machine Dimensions: 208″ x 202″ x 86″
Machine Weight: 26,000lbs
