Used 2012 AMADA HDS-2204NT | Brakes, Press
Have one to sell?
ConditionUsed
1 available

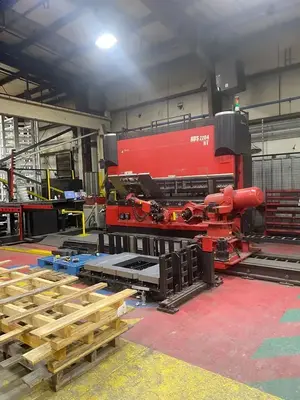

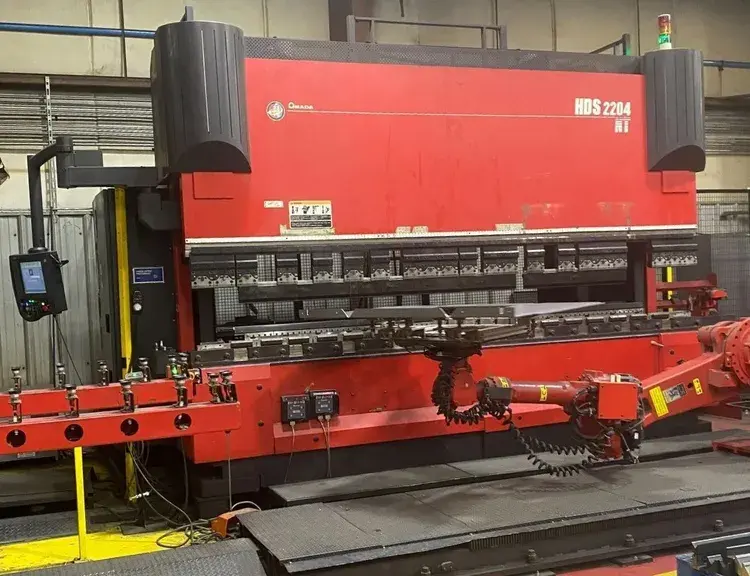

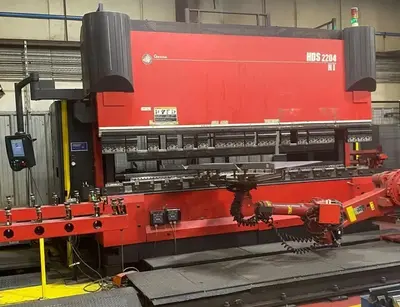

AMADA HDS-2204NT press brake for sale, 2012 model, in used condition. Features 243-ton capacity, hydraulic operation, 168.5" overall length, and 9.84" stroke. Features robotic material handling system capable of handling heavy duty material. Ideal for precision sheet metal bending tasks.
Control Amada AMNC Control

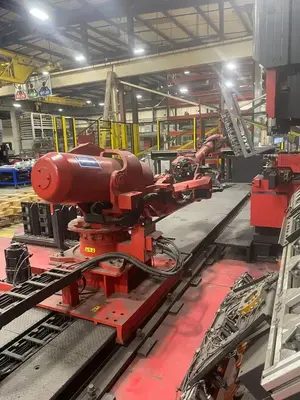

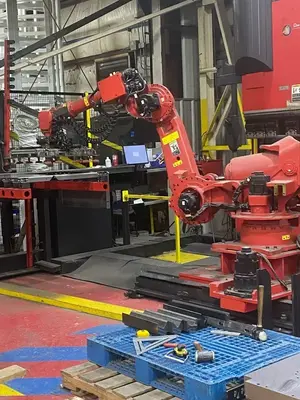

Astro 165W NT Robotic Bending System at Additional Cost of $39500
Astro 165W NT Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
Capacity 243 Ton
Overall Length of Bed 14'
Distance Between Housings 148"
Stroke 9.84"
Open Height 26"
Machine Length (C) 224.8"
Machine Length (D) 126.57"
Approach Speed 7.87 IPS
Bending Speed 0.78 IPS
Power Requirement 99 Amps @ 200 Volts
Hydraulic Oil Capacity 33.4 Gallons
Astro 165W Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
