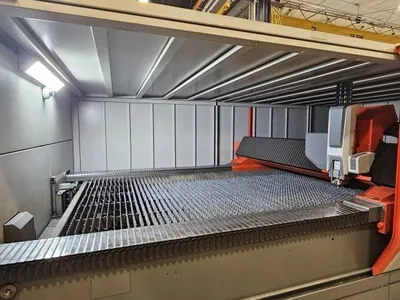

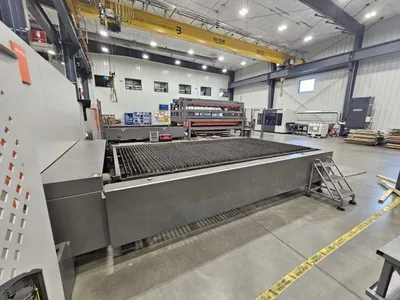

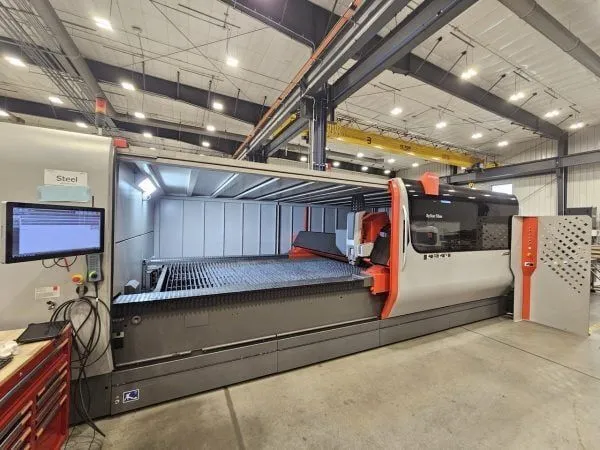

Used 2019 BYSTRONIC BYSTAR 4020 | Laser Cutters

Construction length, ca. [L] 559 in
Construction width, ca. [W] 248 in
Construction height, ca. [H] 126 in
Nominal sheet size (X) 160 in
Nominal sheet size (Y) 80 in
Cutting area (X) 162 in
Cutting area (Y) 83 in
Z-axis travel 4 in
Maximum positioning speed parallel axis X/Y 4724 in/min
Maximum positioning speed simultaneous 6681 in/min
Bilateral repeatability of positioning of one axis R (following
ISO 230-2:2006) ± 0.001 in averaged
Bilateral position deviation of one axis M (following
ISO 230-2:2006) ± 0.002 in
Edge detection accuracy ± 0.02 in
Maximum workpiece weight 4190 lbs

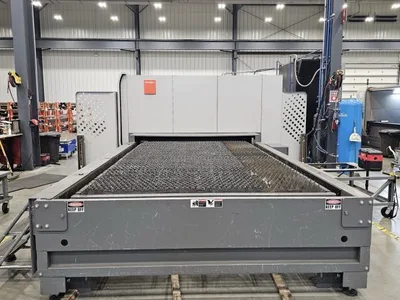

Maximum allowed workpiece weight on both shuttle table 7080 lbs
Machine weight (without exhaust and conveyor) 32,000 lbs
Table changeover time 28 s

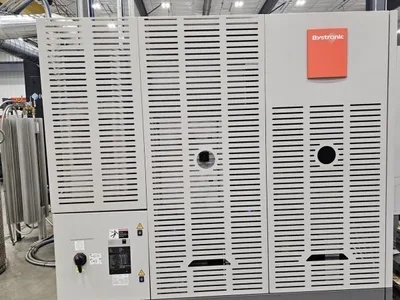

Laser source Fiber 6000
Power 6000 W

Steel (max. cutting sheet thickness) – * with option BeamShaper
1/1.18* in
Stainless steel (max. Cutting sheet thickness) 1.18 in
Aluminium (max. cutting sheet thickness) 1.18 in
Brass (max. Sheet thickness) 0.59 in
Copper (max. Sheet thickness) 0.47 in

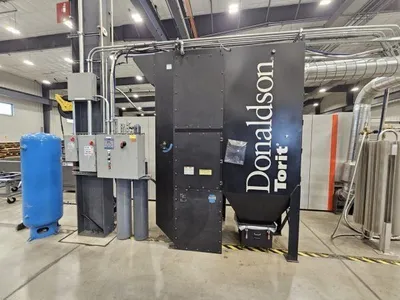

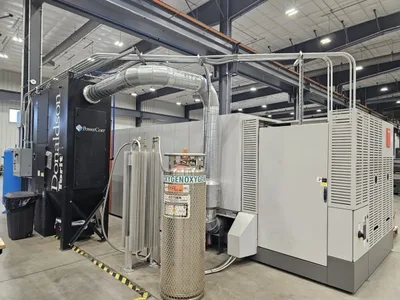

Total electric consumption of system (with exhaust, chiller) 34.3 kW
