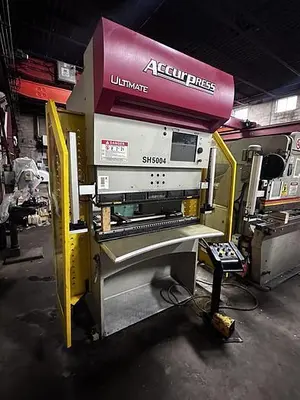

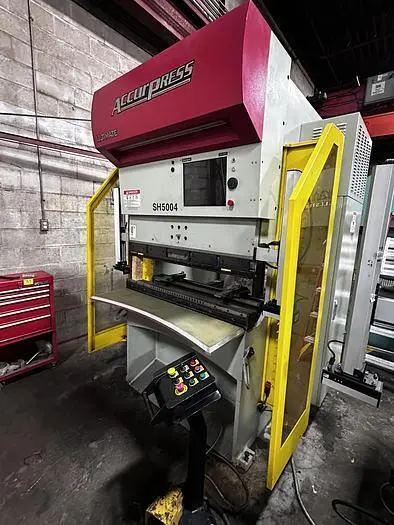

FRONT MOUNTED DELEM DA66T TOUCH SCREEN CONTROL
HYBRID " SH" USES SERVO CONTROLLED VARIABLE PUMPING ( SVP ) WHICH FEATURES A
SERVO MOTOR DIRECT-DRIVING REXROTH PUMP TO PRODUCE 470 IPM RAM APPROACH &
RETURN SPEEDS
WILA NORTH AMERICAN HYDRAULIC TOP CLAMPING
LAZERSAFE SAFETY LIGHTS

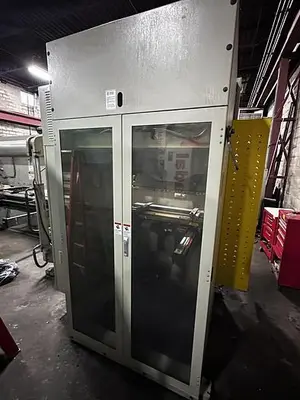

SIDE & REAR SAFETY GAURDING
WORKLIGHT

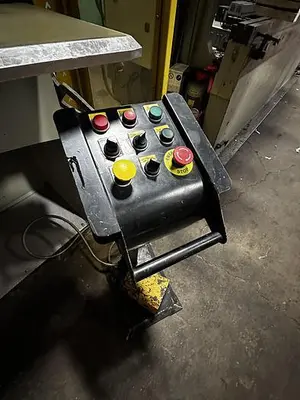

FOOT PEDESTAL CONTROL
| Tonnage | 50 T | 45.359 t |
| Overall Length | 48" | 1.2 m |
| Between Housings | 45.6" | 1.2 m |
| Stroke | 5.9" | 149.86 mm |
| # Axis | 2 | 2 |
| Weight | 7400 | 7400 |
BENDING FORCE 50 TON
BEDNING LENGTH 48"
DISTANCE BETWEEN FRAMES 45.6"
RAM OPEN HEIGHT 20.25"
THROAT DEPTH 10"
FAST APPROACH 470 IPM
SLOW BEND 0 - 47 IPM
FAST RETURN 470 IPM
X-AXIS TRAVELLING 1180 IPM
R-AXIS TRAVELLING 1180 IPM
STROKE, Y-AXIS 5.9"
X-AXIS TRAVEL 23.6"
R-AXIS TRAVEL 10"
OIL TANK 5.3 US GAL.
APPROX. WEIGHT 7,400 LBS
This equipment is currently unavailable. Similar equipment available now is shown below.
