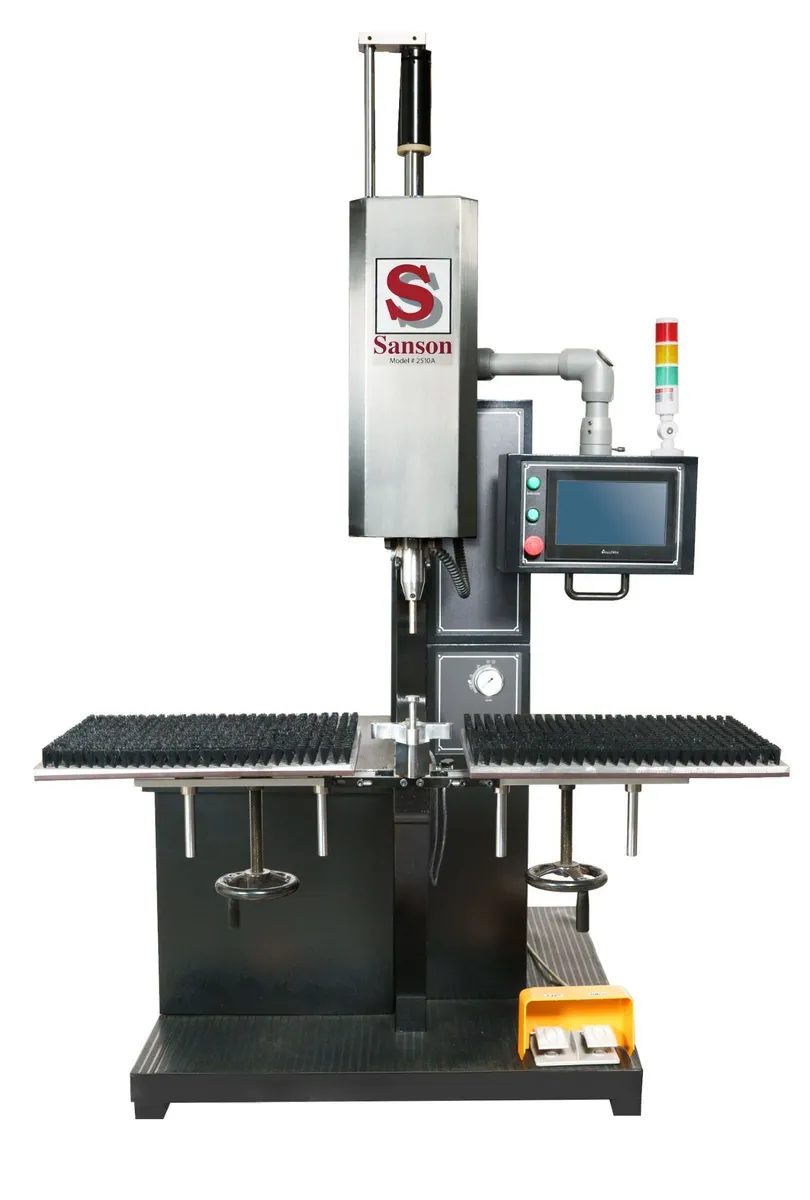

2025 Sanson 2510A 10 Ton Insertion Machine
Have one to sell?
ConditionNew
1 available
New
25" Throat
Ram Force Range 10 Ton
Zoom Training Available
Touch Screen with Automatic Pressure Setting
4SS Tool Holder
Manual Tool Package
Brush Table
Robust Single piece frame design
Mechanical Depth Stop for thin materials and riveting
.500 diameter tooling
Safety system verification at start up
Force Range: 450-20,000lbs (10 Ton)
Throat Depth: 25.59"
Throat Height: 19.59"
Stroke Length: 0-7.87" Adjustable
Electrical Current: 220V, 3PH, 60Hz.
Power: 6A
Motor HP: 4HP
Repeatability: +/- 1% of Force Setting
Safety Device: Yes
Speed: Up to 1200 Insertions per Hour
Fastener Range Maximum: Carbon Steel, w/ Max Size Nut M12 S/O MIO Stud M8
Hydraulic Oil: DTE26
Oil Tank Capacity: 21 Gallons
Air Pressure: 1-100PSI
