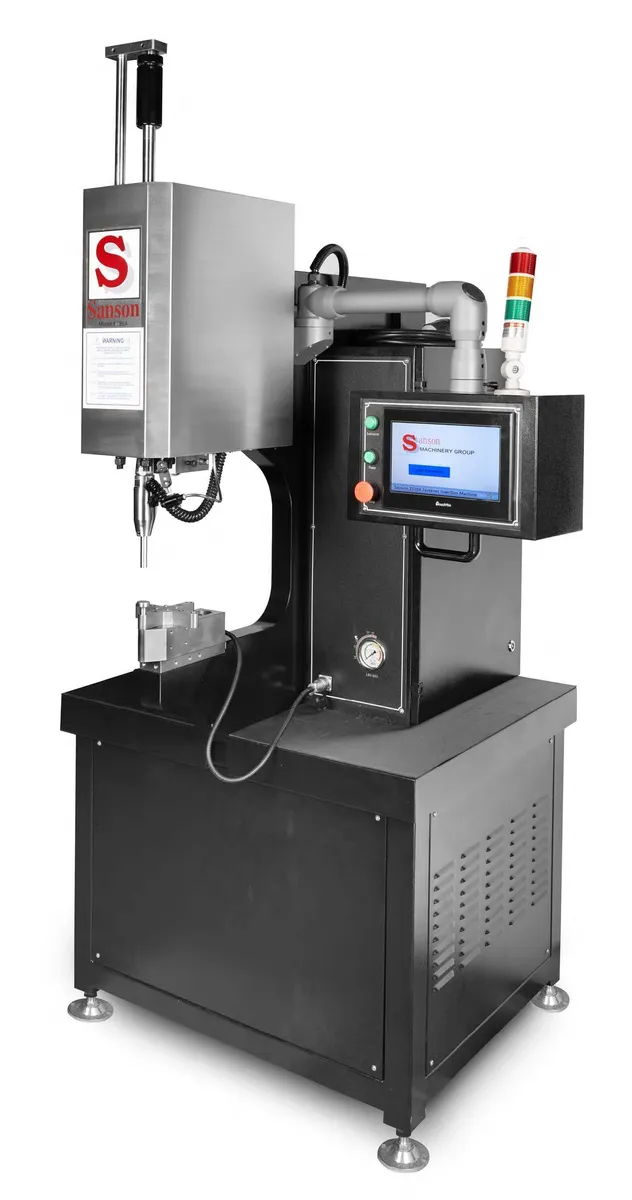

2025 Sanson 186A Insertion Machine
Have one to sell?
ConditionNew
1 available
New
2025 Sanson 186A Insertion Machine: Brand new and equipped with an 18" throat, it features a 6-ton ram force range, touchscreen with auto pressure, and achieves up to 1200 insertions/hr. Powered by a 2HP motor, it's built for precision and efficiency.
18" Throat
Ram Force Range 6 Ton
Zoom Training Available
Touch Screen with Automatic Pressure Setting
4SS Tool Holder
TouchWin Control
Robust Single piece frame design
Mechanical Depth Stop for thin materials and riveting
.500 diameter tooling
Safety system verification at start up
Force Range: 500-12,000lbs (6 Ton)
Throat Depth: 17.71"
Throat Height: 15.74"
Stroke Length: 0-7.87" Adjustable
Electrical Current: 220V, 3PH, 60Hz.
Power: 4A
Motor HP: 2HP
Repeatability: +/- 1% of Force Setting
Safety Device: Yes
Speed: Up to 1200 Insertions per Hour
Fastener Range Maximum: Carbon Steel, Nut 8020, Stud 0518, Standoff 032
Hydraulic Oil: DTE26
Oil Tank Capacity: 16 Gallons
Air Pressure: 1-100PSI
