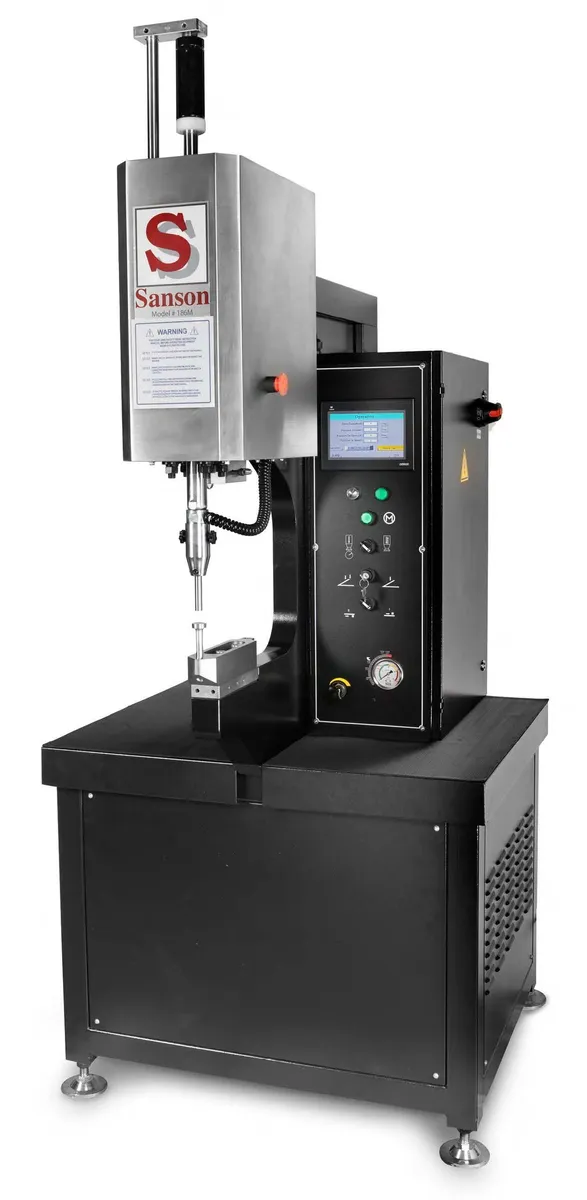

2025 Sanson 186M Insertion Machine
Have one to sell?
ConditionNew
1 available
New
Omron Batch Counter
18" Throat
Ram Force Range 6-Ton
Electrical Cabinet and Foot Pedal
Zoom Training Available
Robust Single piece frame design
Mechanical Depth Stop for thin materials and riveting
.500 diameter tooling
Safety system verification at start up
Force Range: 500-12,000lbs (6 Ton)
Throat Depth: 17.71"
Throat Height: 15.74"
Stroke Length: 0-7.87" Adjustable
Electrical Current: 220V, 3PH, 60Hz.
Power: 4A
Motor HP: 2HP
Repeatability: +/- 1% of Force Setting
Safety Device: Yes
Speed: Up to 1200 Insertions per Hour
Fastener Range Maximum: Carbon Steel, Nut 0624, Stud 0420, Standoff 032
Hydraulic Oil: DTE26
Oil Tank Capacity: 16 Gallons
Air Pressure: 1-100PSI
